View Issue Details [ Jump to Notes ] | [ Issue History ] [ Print ] | ||||||||
ID | Project | Category | View Status | Date Submitted | Last Update | ||||
0003636 | Doomseeker | UI | public | 2019-04-24 14:48 | 2019-07-30 10:13 | ||||
Reporter | Zalewa | ||||||||
Assigned To | Zalewa | ||||||||
Priority | high | Severity | tweak | Reproducibility | N/A | ||||
Status | closed | Resolution | fixed | ||||||
Platform | OS | OS Version | |||||||
Product Version | 1.1 | ||||||||
Target Version | 1.3 | Fixed in Version | 1.3 | ||||||
Summary | 0003636: Create Game box - adjust UI elements to Host, Offline and Remote modes | ||||||||
Description | Create Game box could use some more distinctive separation when it comes to the modes it operates on. The "Remote game setup" mode for Chocolate Doom already disables some widgets, but they could just be hidden to reduce interface clutter. The "Host server" and "Play offline" modes could be separated. There are some items in the box that only make sense when you host a server - UPNP, broadcasts, port, connect, join and rcon passwords. Moreover, some games (depending on a game and OS it runs on) may use different executables for hosting a server and for an offline game. A solution for this duality is to add a switch of some kind to the Create Game box that will put it into one of the definite modes: offline or server. As most options are the same, it should be possible to dynamically switch between the two modes without losing any of the previously input data. The box should also clearly state in which mode it currently is. | ||||||||
Attached Files | ![]() ![]() ![]() ![]() ![]() ![]() | ||||||||
![]() |
|||||||||||||||||||||
|
![]() |
|
Zalewa (developer) 2019-05-02 14:03 edited on: 2019-05-02 14:04 |
This should be done, however I decided not to push directly to the main repository this time. Instead I created a PR for this: https://bitbucket.org/Doomseeker/doomseeker/pull-requests/65 [^] This change introduces some significant appearance changes to the Create Game box. I think it's better now but I'd still like that to be checked by another pair of eyes (or two) before merging this into the main repo. Relevant CHANGELOG entry will look like this:
|
WubTheCaptain (reporter) 2019-05-02 18:53 edited on: 2019-05-02 19:05 |
Thanks a lot so far, Zalewa. Your changes are definitely an improvement and remind me more of what Doomseeker 1.1 used to be. Doomseeker 1.2's UI in Create Game is a bit yucky, to say the least! Some feedback:
|
WubTheCaptain (reporter) 2019-05-02 19:05 edited on: 2019-05-02 19:08 |
Re: previous comment: I edited and move some irrelevant comments to the parent issue at 0003480:0020607. |
WubTheCaptain (reporter) 2019-05-02 19:36 |

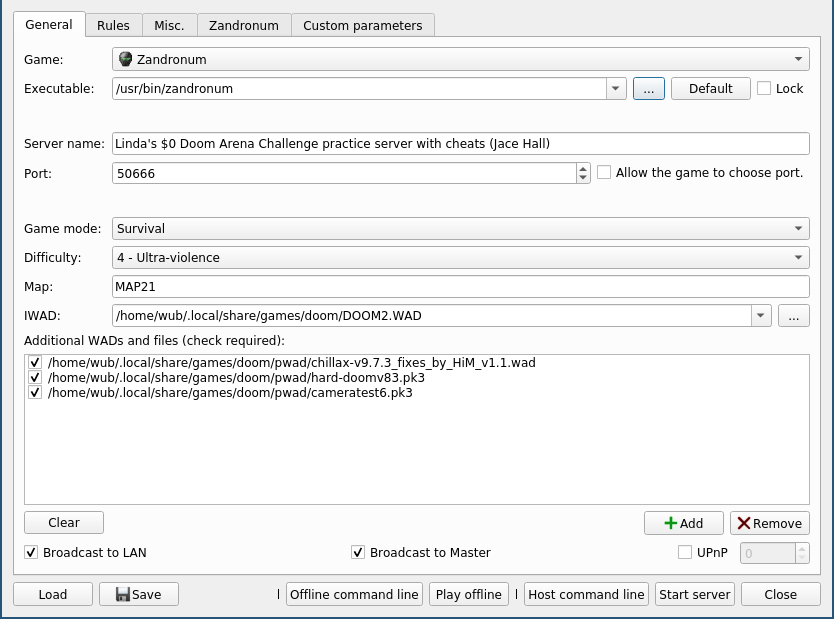

Hope you don't mind, I'm also attaching a screenshot of your work to ease review (for those who don't compile from source). |
Zalewa (developer) 2019-05-02 21:01 |
Quote The bold text was meant to state that this action will start the game, but as you say an appropriate icon may be just enough. I'll toy with this a bit more. The bold text will be gone, probably. Quote The box in this mode is opened when you try to join an empty Chocolate Doom server. Quote I think "Server" is the best that can be put there. "Misc." doesn't fit with the fact that this tab is always disabled in offline game mode. Your other proposals don't sound any more accurate to me. Quote To be frank it's bothering me too that the buttons are in a different place now. I'll probably move them back to the right side. ---- Also, from your comment 0003480:0020607 from the other ticket: Quote TBH I didn't even think of it. I'll scan the Create Game code for the presence of various titles and prefix them with "Doomseeker -" wherever appropriate as this will be more consistent with the other parts of the program. Quote With the main menu being present now it should be easy as Qt should auto-wire that. I only hope it won't clash with the same shortcuts in the main window. Quote Apply or Cancel would really not make any sense here. "Close" as it is may be extraneous as it achieves the same purpose as the 'X' button provided in the window frame by the windowing system, but it's usually expected for a dialog box to have an extraneous 'X' button in a form of "No", "Cancel" or "Close" anyway. Quote Indeed. |
WubTheCaptain (reporter) 2019-05-02 22:00 |
Quote from Zalewa Issue TBD. (I remember I didn't report this for Doomseeker 1.1 for being trivial or a non-issue.) Quote from Zalewa This is 0003645. Quote from Zalewa 0003646. |
Zalewa (developer) 2019-05-03 12:21 |

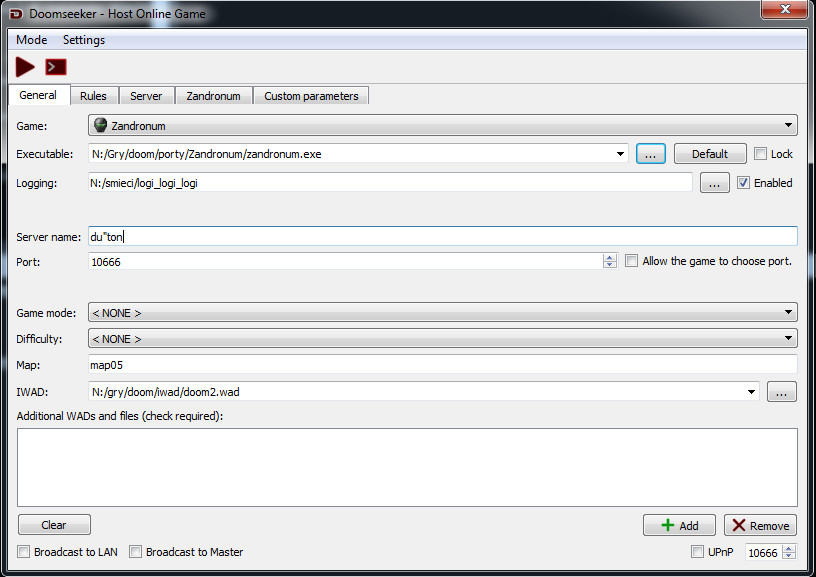

I've updated the PR with the next iteration of the proposed UI. Highlights: * "Start Game" and "Command Line" buttons were moved to a toolbar which now sits at the top of the window below the menu. * "Close" button is gone. I know this is contrary to what I said before, but it really did not fit with the toolbar approach. I hope we can rely on all windowing systems to provide the 'X' button on the titlebar. The box can also be closed with the ESCAPE key on the keyboard. If lack of "Close" button will be a problem, an "Exit" button can be added to the toolbar. * Load/Save settings options have kbd shortcuts and the load option has an icon now. * The useless '?' button is gone from the box's title bar. * "Doomseeker - " prefix has been added to the titles I've found in the main class of this box. * Borders and extra padding have been removed from the main tab widget making the widgets in the box stick closer to its edges. One thing to consider is that all of the menu options can be moved to the toolbar, thus removing the necessity to have the menu bar at all. I don't have any icons for the "Offline/Host" mode toggles, tho. Perhaps the LAN and localhost "flags" would fit there? |
WubTheCaptain (reporter) 2019-05-03 13:20 |
Looking at the screenshot, my opinion:
Quote from Zalewa I'm supportive for more experimenting with this idea or mock drawings. |
WubTheCaptain (reporter) 2019-05-03 13:29 edited on: 2019-05-03 13:30 |
Additionally, I think keeping the "Play!" buttons et cetera at bottom makes more sense to the reader with eyes: You start with configuration at top, and once done you finish your action at the bottom. For the main server browser window, the toolbar design there makes more sense: Unless you have the server browser list servers on startup, you click on the "refresh servers" button first and then move down to find the server you want. Or you go to Create Game before looking at the server browser. The new proposed toolbar design with big buttons for Create Game window would be contradictory and inconsistent to current practices, in my opinion. |
WubTheCaptain (reporter) 2019-05-03 13:32 |
Anyway, are we done with this issue? Can we discuss the other issues like button placement in some other issue? |
WubTheCaptain (reporter) 2019-05-03 13:39 |
Fyi, FTBFS related to recent change: 0003646:0020621 |
Zalewa (developer) 2019-05-03 14:48 |

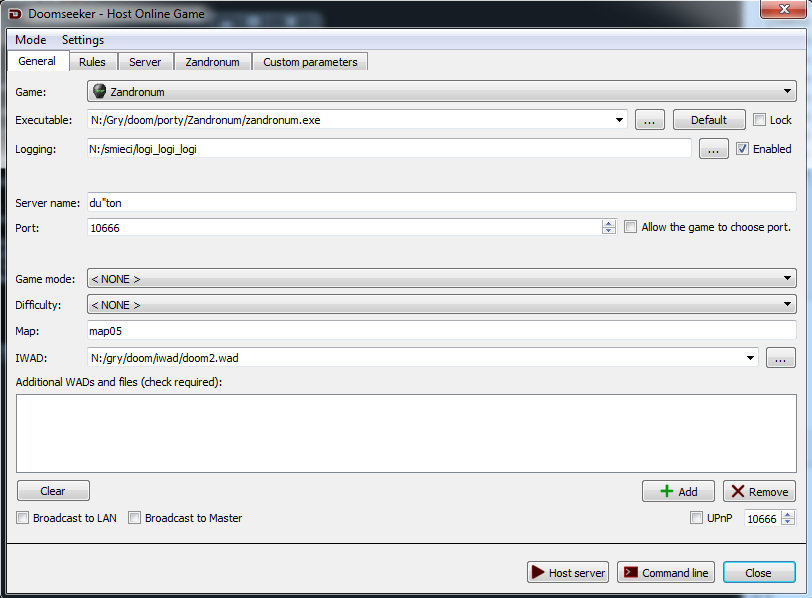

I think that the window with the toolbar looks cleaner and is not confusing even if you're used to the previous design, but I'll agree with you to err on the cautious side and stick to the previous design for the time being. Proposal 3 reverts the button placement. I also already added necessary reverts to the PR. |
Zalewa (developer) 2019-05-03 15:08 |
I'm done with pushing code to the PR. If there are no further remarks then I'll clean it up and merge it into the repo proper. |
WubTheCaptain (reporter) 2019-05-03 16:55 |

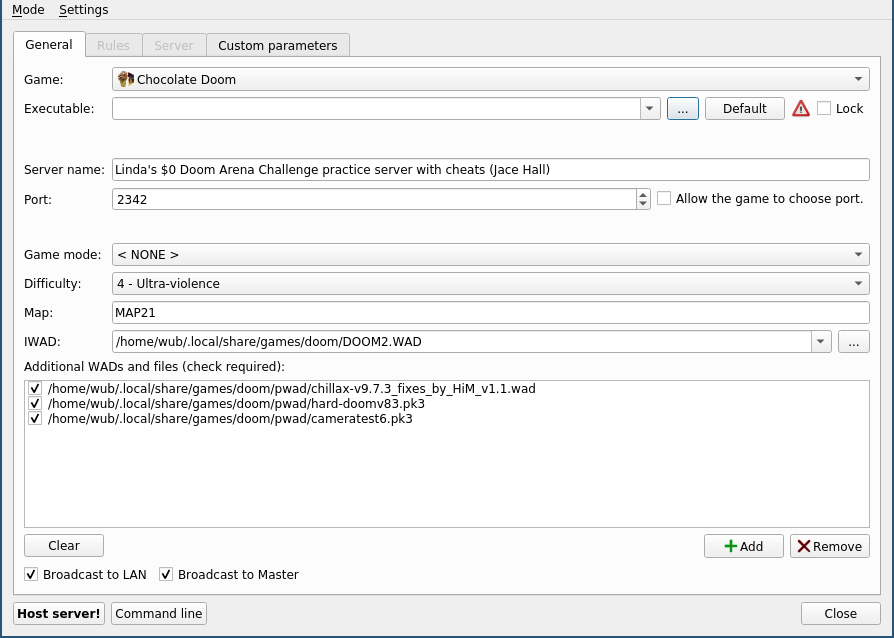

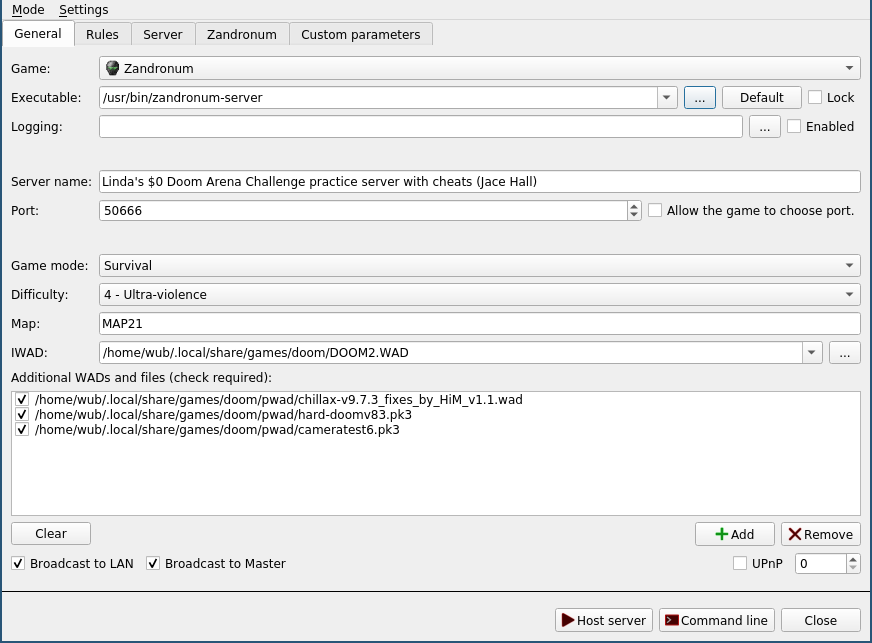

I attached screenshots from Doomseeker 1.1 (actually 1.2~beta) and 1.2 release for completeness for comparison. |
WubTheCaptain (reporter) 2019-05-03 17:14 |

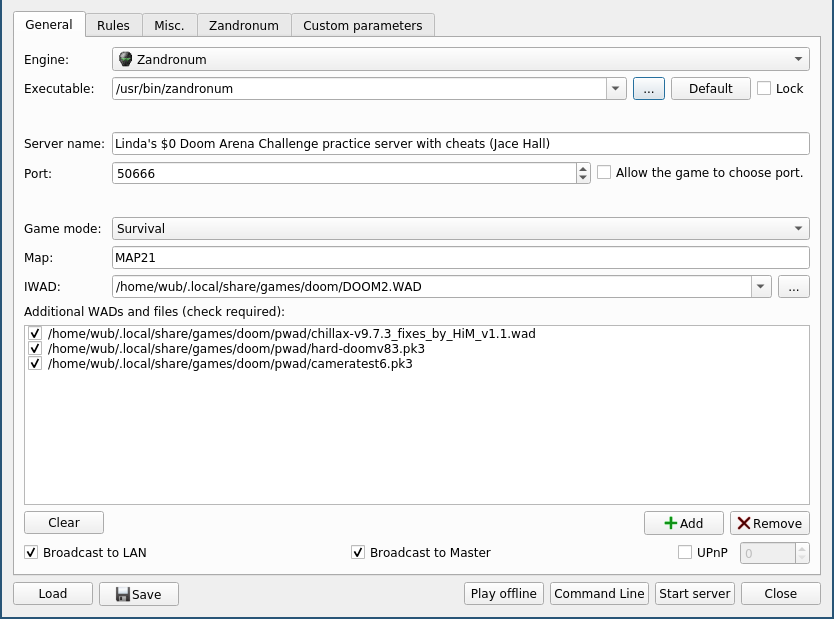

Quote from Zalewa The more I look at it, the more inconsistencies I find around Doomseeker when it comes to this. "About Doomseeker" is an obvious example. I have to attach a screenshot of proposal 3 on Debian GNU/Linux to show you the difference, because it's not nearly like on Windows. Then there's even more off-topic irrelevant UI inconsistencies, such as missing icons next to "Close" buttons that can be found in "About Doomseeker" but not in "Create Game". Agh! I have issues to report tomorrow. Honestly, the issue in OP is resolved or very close to it. Any UI issues I'd report somewhere. Zalewa, please feel free to merge this imho for testing. We'll polish it soon in other reported issues, I hope. |
Zalewa (developer) 2019-05-03 21:01 |
The bulk change merged here:https://bitbucket.org/Doomseeker/doomseeker/commits/c55d8d5784fa2c1a96da7b8cff0148e8c7457741 [^] Plus some UI tweaks here:https://bitbucket.org/Doomseeker/doomseeker/commits/41f4ebbeb3f36b01fd4d5eff98f3316953a82f15 [^] |
Pol M (developer) 2019-07-12 18:08 edited on: 2019-07-13 18:10 |
Everything looks good. I've also reviewed the code, and it was Zalewa's quality code. 10/10 IGN, approved. Wait. It looks like the plugin used in the remote mode is always the first one in the list, since the value in: CreateServerDialog::makeRemoteGameSetupDialog is ignored. This leads to chocolate-doom being selected, but if another plugin used this functionality it wouldn't work. |
Zalewa (developer) 2019-07-13 21:02 edited on: 2019-07-14 13:15 |
Should be fixed here:https://bitbucket.org/Doomseeker/doomseeker/commits/d4ed06aa395bd956e60e827a045d6e03959534c8 [^] I didn't want to touch the MAIN_EXPORT API so I kept the 'const' qualifier on the EnginePlugin* argument in the API for the Create Game dialog and instead used const_cast<> to remove the qualifier. This could also be done by extracting the EnginePlugin pointer from PluginLoader by its name, but I figured const_cast<> will do the same job. |
Pol M (developer) 2019-07-14 20:02 |
This fixes the issue. Resolving. |
This issue is already marked as resolved. If you feel that is not the case, please reopen it and explain why. |
|
