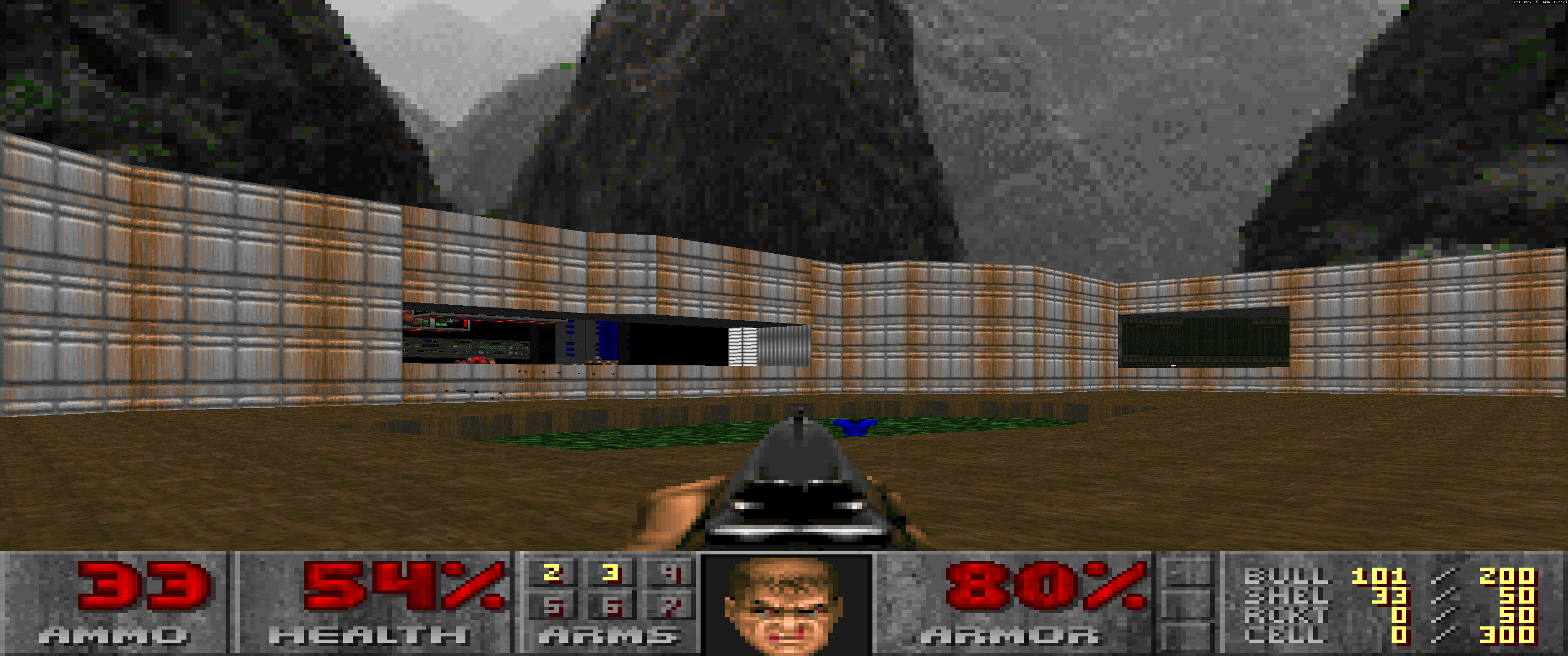

 Screenshot_Doom_20160303_161939.png [^] (1,002,400 bytes) 2016-03-04 00:21
 zdoom_ultrawide_patch.txt [^] (13,585 bytes) 2016-03-04 00:24 [Show Content] [Hide Content]From 522a2e7292a96008da4911bee580cfd02fa72537 Mon Sep 17 00:00:00 2001
From: Michael Labbe <mike@frogtoss.com>
Date: Wed, 2 Mar 2016 02:31:12 -0800
Subject: [PATCH 1/6] 21:9 aspect ratio support
- vid_aspect 6 forces 21:9
---
src/g_shared/shared_sbar.cpp | 4 ++--
src/posix/sdl/hardware.cpp | 4 ++--
src/r_main.cpp | 4 ++--
src/r_utility.cpp | 2 +-
src/v_draw.cpp | 2 +-
src/v_video.cpp | 19 ++++++++++++++-----
src/v_video.h | 8 +++++++-
src/win32/hardware.cpp | 4 ++--
8 files changed, 31 insertions(+), 16 deletions(-)
diff --git a/src/g_shared/shared_sbar.cpp b/src/g_shared/shared_sbar.cpp
index dabddba..d0153a9 100644
--- a/src/g_shared/shared_sbar.cpp
+++ b/src/g_shared/shared_sbar.cpp
@@ -1058,7 +1058,7 @@ void DBaseStatusBar::RefreshBackground () const
int x, x2, y, ratio;
ratio = CheckRatio (SCREENWIDTH, SCREENHEIGHT);
- x = (!(ratio & 3) || !Scaled) ? ST_X : SCREENWIDTH*(48-BaseRatioSizes[ratio][3])/(48*2);
+ x = (!IsRatioWidescreen(ratio) || !Scaled) ? ST_X : SCREENWIDTH*(48-BaseRatioSizes[ratio][3])/(48*2);
y = x == ST_X && x > 0 ? ST_Y : ::ST_Y;
if(!CompleteBorder)
@@ -1078,7 +1078,7 @@ void DBaseStatusBar::RefreshBackground () const
{
if(!CompleteBorder)
{
- x2 = !(ratio & 3) || !Scaled ? ST_X+HorizontalResolution :
+ x2 = !IsRatioWidescreen(ratio) || !Scaled ? ST_X+HorizontalResolution :
SCREENWIDTH - (SCREENWIDTH*(48-BaseRatioSizes[ratio][3])+48*2-1)/(48*2);
}
else
diff --git a/src/posix/sdl/hardware.cpp b/src/posix/sdl/hardware.cpp
index 75d6632..213ca04 100644
--- a/src/posix/sdl/hardware.cpp
+++ b/src/posix/sdl/hardware.cpp
@@ -308,7 +308,7 @@ CUSTOM_CVAR (Float, vid_winscale, 1.f, CVAR_ARCHIVE|CVAR_GLOBALCONFIG)
CCMD (vid_listmodes)
{
- static const char *ratios[5] = { "", " - 16:9", " - 16:10", "", " - 5:4" };
+ static const char *ratios[6] = { "", " - 16:9", " - 16:10", "", " - 5:4", " - 21:9" };
int width, height, bits;
bool letterbox;
@@ -325,7 +325,7 @@ CCMD (vid_listmodes)
int ratio = CheckRatio (width, height);
Printf (thisMode ? PRINT_BOLD : PRINT_HIGH,
"%s%4d x%5d x%3d%s%s\n",
- thisMode || !(ratio & 3) ? "" : TEXTCOLOR_GOLD,
+ thisMode || !IsRatioWidescreen(ratio) ? "" : TEXTCOLOR_GOLD,
width, height, bits,
ratios[ratio],
thisMode || !letterbox ? "" : TEXTCOLOR_BROWN " LB"
diff --git a/src/r_main.cpp b/src/r_main.cpp
index 12dd391..ee557bb 100644
--- a/src/r_main.cpp
+++ b/src/r_main.cpp
@@ -363,7 +363,7 @@ void R_SWRSetWindow(int windowSize, int fullWidth, int fullHeight, int stHeight,
virtwidth = virtwidth2 = fullWidth;
virtheight = virtheight2 = fullHeight;
- if (trueratio & 4)
+ if (Is54Aspect(trueratio))
{
virtheight2 = virtheight2 * BaseRatioSizes[trueratio][3] / 48;
}
@@ -372,7 +372,7 @@ void R_SWRSetWindow(int windowSize, int fullWidth, int fullHeight, int stHeight,
virtwidth2 = virtwidth2 * BaseRatioSizes[trueratio][3] / 48;
}
- if (WidescreenRatio & 4)
+ if (Is54Aspect(WidescreenRatio))
{
virtheight = virtheight * BaseRatioSizes[WidescreenRatio][3] / 48;
}
diff --git a/src/r_utility.cpp b/src/r_utility.cpp
index 089c653..d301b45 100644
--- a/src/r_utility.cpp
+++ b/src/r_utility.cpp
@@ -434,7 +434,7 @@ void R_SetWindow (int windowSize, int fullWidth, int fullHeight, int stHeight)
centery = viewheight/2;
centerx = viewwidth/2;
- if (WidescreenRatio & 4)
+ if (Is54Aspect(WidescreenRatio))
{
centerxwide = centerx;
}
diff --git a/src/v_draw.cpp b/src/v_draw.cpp
index de096e3..eeb1a7d 100644
--- a/src/v_draw.cpp
+++ b/src/v_draw.cpp
@@ -816,7 +816,7 @@ void DCanvas::FillBorder (FTexture *img)
return;
}
int bordtop, bordbottom, bordleft, bordright, bord;
- if (myratio & 4)
+ if (Is54Aspect(myratio))
{ // Screen is taller than it is wide
bordleft = bordright = 0;
bord = Height - Height * BaseRatioSizes[myratio][3] / 48;
diff --git a/src/v_video.cpp b/src/v_video.cpp
index 73681fd..b69bba6 100644
--- a/src/v_video.cpp
+++ b/src/v_video.cpp
@@ -1397,7 +1397,7 @@ void V_CalcCleanFacs (int designwidth, int designheight, int realwidth, int real
int cx1, cy1, cx2, cy2;
ratio = CheckRatio(realwidth, realheight);
- if (ratio & 4)
+ if (Is54Aspect(ratio))
{
cwidth = realwidth;
cheight = realheight * BaseRatioSizes[ratio][3] / 48;
@@ -1645,12 +1645,14 @@ CUSTOM_CVAR (Int, vid_aspect, 0, CVAR_GLOBALCONFIG|CVAR_ARCHIVE)
// 2: 16:10
// 3: 17:10
// 4: 5:4
+// 5: 17:10 (redundant)
+// 6: 21:9
int CheckRatio (int width, int height, int *trueratio)
{
int fakeratio = -1;
int ratio;
- if ((vid_aspect >= 1) && (vid_aspect <= 5))
+ if ((vid_aspect >= 1) && (vid_aspect <= 6))
{
// [SP] User wants to force aspect ratio; let them.
fakeratio = int(vid_aspect);
@@ -1661,7 +1663,7 @@ int CheckRatio (int width, int height, int *trueratio)
else if (fakeratio == 5)
{
fakeratio = 3;
- }
+ }
}
if (vid_nowidescreen)
{
@@ -1702,6 +1704,11 @@ int CheckRatio (int width, int height, int *trueratio)
{
ratio = 4;
}
+ // test for 21:9 (actually 64:27, 21:9 is a semi-accurate ratio used in marketing)
+ else if (abs (height * 64/27 - width) < 30)
+ {
+ ratio = 6;
+ }
// Assume anything else is 4:3. (Which is probably wrong these days...)
else
{
@@ -1724,13 +1731,15 @@ int CheckRatio (int width, int height, int *trueratio)
// base_width = 240 * x / y
// multiplier = 320 / base_width
// base_height = 200 * multiplier
-const int BaseRatioSizes[5][4] =
+const int BaseRatioSizes[7][4] =
{
{ 960, 600, 0, 48 }, // 4:3 320, 200, multiplied by three
{ 1280, 450, 0, 48*3/4 }, // 16:9 426.6667, 150, multiplied by three
{ 1152, 500, 0, 48*5/6 }, // 16:10 386, 166.6667, multiplied by three
{ 1224, 471, 0, 48*40/51 }, // 17:10 408, 156.8627, multiplied by three
- { 960, 640, (int)(6.5*FRACUNIT), 48*15/16 } // 5:4 320, 213.3333, multiplied by three
+ { 960, 640, (int)(6.5*FRACUNIT), 48*15/16 }, // 5:4 320, 213.3333, multiplied by three
+ { 1224, 471, 0, 48*40/51 }, // 17:10 408, 156.8627, multiplied by three (REDUNDANT)
+ { 568, 113, 0, 48*5/8 } // 21:9
};
void IVideo::DumpAdapters ()
diff --git a/src/v_video.h b/src/v_video.h
index 0497b60..7e0b092 100644
--- a/src/v_video.h
+++ b/src/v_video.h
@@ -503,8 +503,14 @@ extern "C" void ASM_PatchPitch (void);
int CheckRatio (int width, int height, int *trueratio=NULL);
static inline int CheckRatio (double width, double height) { return CheckRatio(int(width), int(height)); }
-extern const int BaseRatioSizes[5][4];
+extern const int BaseRatioSizes[7][4];
+inline bool IsRatioWidescreen(int ratio) {
+ return (ratio & 3)!=0;
+}
+inline bool Is54Aspect(int ratio) {
+ return ratio == 4;
+}
#endif // __V_VIDEO_H__
diff --git a/src/win32/hardware.cpp b/src/win32/hardware.cpp
index d8a4fa9..cb4250b 100644
--- a/src/win32/hardware.cpp
+++ b/src/win32/hardware.cpp
@@ -338,7 +338,7 @@ CUSTOM_CVAR (Float, vid_winscale, 1.f, CVAR_ARCHIVE|CVAR_GLOBALCONFIG)
CCMD (vid_listmodes)
{
- static const char *ratios[5] = { "", " - 16:9", " - 16:10", " - 17:10", " - 5:4" };
+ static const char *ratios[6] = { "", " - 16:9", " - 16:10", " - 17:10", " - 5:4", " - 21:9" };
int width, height, bits;
bool letterbox;
@@ -356,7 +356,7 @@ CCMD (vid_listmodes)
int ratio = CheckRatio (width, height);
Printf (thisMode ? PRINT_BOLD : PRINT_HIGH,
"%s%4d x%5d x%3d%s%s\n",
- thisMode || !(ratio & 3) ? "" : TEXTCOLOR_GOLD,
+ thisMode || !IsRatioWidescreen(ratio) ? "" : TEXTCOLOR_GOLD,
width, height, bits,
ratios[ratio],
thisMode || !letterbox ? "" : TEXTCOLOR_BROWN " LB"
--
2.5.3.windows.1
From 62a0e7b397fa59945a88a5fe34aced9311f4308e Mon Sep 17 00:00:00 2001
From: Michael Labbe <mike@frogtoss.com>
Date: Wed, 2 Mar 2016 12:07:11 -0800
Subject: [PATCH 2/6] fix: 21:9 AR stretching in intermission, end level
screens
---
src/v_draw.cpp | 7 +++++++
1 file changed, 7 insertions(+)
diff --git a/src/v_draw.cpp b/src/v_draw.cpp
index eeb1a7d..ca9f9ae 100644
--- a/src/v_draw.cpp
+++ b/src/v_draw.cpp
@@ -744,6 +744,13 @@ void DCanvas::VirtualToRealCoords(double &x, double &y, double &w, double &h,
double vwidth, double vheight, bool vbottom, bool handleaspect) const
{
int myratio = handleaspect ? CheckRatio (Width, Height) : 0;
+
+ // if 21:9 AR, map to 16:9 for all callers.
+ // this allows for black bars and stops the stretching of fullscreen images
+ if (myratio == 6) {
+ myratio = 2;
+ }
+
double right = x + w;
double bottom = y + h;
--
2.5.3.windows.1
From 6a294fffdc3ba5d7e36ca66be592a71dbce405ea Mon Sep 17 00:00:00 2001
From: Michael Labbe <mike@frogtoss.com>
Date: Wed, 2 Mar 2016 12:33:06 -0800
Subject: [PATCH 3/6] 21:9 fix for black bars overlapping fullscreen images
---
src/v_draw.cpp | 7 +++++++
1 file changed, 7 insertions(+)
diff --git a/src/v_draw.cpp b/src/v_draw.cpp
index ca9f9ae..bf3a65c 100644
--- a/src/v_draw.cpp
+++ b/src/v_draw.cpp
@@ -818,6 +818,13 @@ void DCanvas::VirtualToRealCoordsInt(int &x, int &y, int &w, int &h,
void DCanvas::FillBorder (FTexture *img)
{
int myratio = CheckRatio (Width, Height);
+
+ // if 21:9 AR, fill borders akin to 16:9, since all fullscreen
+ // images are being drawn to that scale.
+ if (myratio == 6) {
+ myratio = 2;
+ }
+
if (myratio == 0)
{ // This is a 4:3 display, so no border to show
return;
--
2.5.3.windows.1
From c29f40b7849c3be658ba779e7f9f4627e1650420 Mon Sep 17 00:00:00 2001
From: Michael Labbe <mike@frogtoss.com>
Date: Wed, 2 Mar 2016 12:35:45 -0800
Subject: [PATCH 4/6] Slightly improve 21:9 ar
---
src/v_video.cpp | 2 +-
1 file changed, 1 insertion(+), 1 deletion(-)
diff --git a/src/v_video.cpp b/src/v_video.cpp
index b69bba6..c224023 100644
--- a/src/v_video.cpp
+++ b/src/v_video.cpp
@@ -1739,7 +1739,7 @@ const int BaseRatioSizes[7][4] =
{ 1224, 471, 0, 48*40/51 }, // 17:10 408, 156.8627, multiplied by three
{ 960, 640, (int)(6.5*FRACUNIT), 48*15/16 }, // 5:4 320, 213.3333, multiplied by three
{ 1224, 471, 0, 48*40/51 }, // 17:10 408, 156.8627, multiplied by three (REDUNDANT)
- { 568, 113, 0, 48*5/8 } // 21:9
+ { 568, 113, 0, 48*9/16 } // 21:9
};
void IVideo::DumpAdapters ()
--
2.5.3.windows.1
From 996c929b5acd4af470aa98c8be54bbd091ee6f24 Mon Sep 17 00:00:00 2001
From: Michael Labbe <mike@frogtoss.com>
Date: Wed, 2 Mar 2016 12:49:28 -0800
Subject: [PATCH 5/6] vid_listmodes crash fix
---
src/posix/sdl/hardware.cpp | 2 +-
src/win32/hardware.cpp | 2 +-
2 files changed, 2 insertions(+), 2 deletions(-)
diff --git a/src/posix/sdl/hardware.cpp b/src/posix/sdl/hardware.cpp
index 213ca04..b066431 100644
--- a/src/posix/sdl/hardware.cpp
+++ b/src/posix/sdl/hardware.cpp
@@ -308,7 +308,7 @@ CUSTOM_CVAR (Float, vid_winscale, 1.f, CVAR_ARCHIVE|CVAR_GLOBALCONFIG)
CCMD (vid_listmodes)
{
- static const char *ratios[6] = { "", " - 16:9", " - 16:10", "", " - 5:4", " - 21:9" };
+ static const char *ratios[6] = { "", " - 16:9", " - 16:10", "", " - 5:4", "", " - 21:9" };
int width, height, bits;
bool letterbox;
diff --git a/src/win32/hardware.cpp b/src/win32/hardware.cpp
index cb4250b..8cc7705 100644
--- a/src/win32/hardware.cpp
+++ b/src/win32/hardware.cpp
@@ -338,7 +338,7 @@ CUSTOM_CVAR (Float, vid_winscale, 1.f, CVAR_ARCHIVE|CVAR_GLOBALCONFIG)
CCMD (vid_listmodes)
{
- static const char *ratios[6] = { "", " - 16:9", " - 16:10", " - 17:10", " - 5:4", " - 21:9" };
+ static const char *ratios[7] = { "", " - 16:9", " - 16:10", " - 17:10", " - 5:4", " - 17:10", " - 21:9" };
int width, height, bits;
bool letterbox;
--
2.5.3.windows.1
From bfc5c10219b0e55e4c3f166e0122c99325abf410 Mon Sep 17 00:00:00 2001
From: Michael Labbe <mike@frogtoss.com>
Date: Wed, 2 Mar 2016 13:58:29 -0800
Subject: [PATCH 6/6] UI support for 21:9
- Can specify aspect ratio 21:9 in video menu
- menu_screenratios cvar can now force 21:9
---
src/menu/videomenu.cpp | 4 ++--
wadsrc/static/menudef.txt | 3 +++
2 files changed, 5 insertions(+), 2 deletions(-)
diff --git a/src/menu/videomenu.cpp b/src/menu/videomenu.cpp
index 59f794f..1328e2f 100644
--- a/src/menu/videomenu.cpp
+++ b/src/menu/videomenu.cpp
@@ -85,7 +85,7 @@ static BYTE BitTranslate[32];
CUSTOM_CVAR (Int, menu_screenratios, -1, CVAR_ARCHIVE)
{
- if (self < -1 || self > 4)
+ if (self < -1 || self > 6)
{
self = -1;
}
@@ -216,7 +216,7 @@ static void BuildModesList (int hiwidth, int hiheight, int hi_bits)
bool letterbox=false;
int ratiomatch;
- if (menu_screenratios >= 0 && menu_screenratios <= 4)
+ if (menu_screenratios >= 0 && menu_screenratios <= 6)
{
ratiomatch = menu_screenratios;
}
diff --git a/wadsrc/static/menudef.txt b/wadsrc/static/menudef.txt
index a36ecc7..164956d 100644
--- a/wadsrc/static/menudef.txt
+++ b/wadsrc/static/menudef.txt
@@ -1677,6 +1677,7 @@ OptionValue ForceRatios
5.0, "17:10"
2.0, "16:10"
4.0, "5:4"
+ 6.0, "21:9"
}
OptionValue Ratios
{
@@ -1684,6 +1685,7 @@ OptionValue Ratios
1.0, "16:9"
2.0, "16:10"
3.0, "17:10"
+ 6.0, "21:9"
-1, "$OPTVAL_ALL"
}
OptionValue RatiosTFT
@@ -1693,6 +1695,7 @@ OptionValue RatiosTFT
1.0, "16:9"
2.0, "16:10"
3.0, "17:10"
+ 6.0, "21:9"
-1, "$OPTVAL_ALL"
}
--
2.5.3.windows.1
|
Chat on our Discord Server
Get the latest version: 3.1
Relationships
Relationships
(0014539)
(0014540)
ZDoom
Doom Wiki
id Software
Doomworld
Odamex
Doomseeker
Internet Doom Explorer
The Sentinel's Playground Servers
